AEC-7732U

50-pin Ultra SCSI to SATA Bridge

FEATURES

•  On-chip high speed ACARD RISC micro-controller

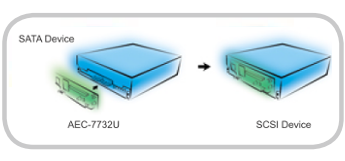

•  A general purpose SCSI-to-SATA device converter

• Higher system I/O performance

• Creates new SCSI devices in economic cost

• Full Ultra SCSI target features supports

SPECIFICATIONS

• ACARD SCSI-to-SATA Bridge Controller

•  Support data transfers at up to 20MB/sec

• Supports SATA BD/DVD Drive*

•  Cross-platform operation supports Windows 2000/XP/Vista/Windows Server 2003/Windows 7/Linux

• Onboard flash ROM for easy firmware upgrade

• Selectable SCSI ID from 0 to 7

•  Dimension : 13.3cm x 4cm x 2.6cm (L x W x H) (with holder)

*  Note:  Please refer to Compatibility List for SATA ODD
