ARS-2320S

80-pin Ultra320 SCSI-to-SATA Bridge

(no support Hot SWAP)

OVERVIEW

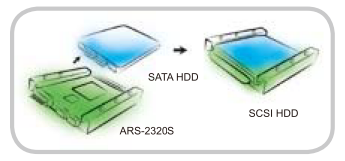

ARS-2320S is an internal SCSI-to-SATA-II bridge HDD enclosure, which converts a standard 2.5”SATA HDD into SCSI HDD with SCA-2 80-pin connector. This device easily and efficiently enables users to create their own SCSI HDD.

FEATURES

•  On-chip high speed ACARD RISC microcontroller

•  A general purpose SCSI-to-SATA HDD converter

•  Cost effective and higher system I/O performance

•  Creates new SCSI devices in economic cost

•  Designed in 3.5” form factor for a built-in 2.5” SATA hard disk drive

•  Cross-platform operation supports Windows NT / 2000 / XP / 2003 / Vista, Linux, Mac, Sun

•  Supports full LVD SCSI interface

SPECIFICATIONS

•  ACARD SCSI-to-SATA Bridge Controller

•  LVD SCSI interface for up to 320MB/sec data transfer rate

•  80pins SCA-2 for SCSI interface

•  Support 2.5” SATA I, II Hard Disk Drives*

•  On-board flash ROM for easy firmware upgrade

•  Selectable SCSI ID from 0 to 15

•  Dimension:  14.6cm x 10.1cm x 2.5cm (L x W x H)

*  Note: Please refer to Compatibility list for SATA HDDs
