ARS-2000SUP

50-pin Ultra SCSI-to-SATA Bridge

OVERVIEW

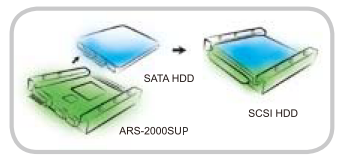

The ARS-2000SUP is a 3.5” Ultra SCSI-to-SATA HDD enclosure that converts your 2.5” SATA HDD to the Ultra SCSI interface by using the latest Ultra SCSI-to-SATA bridge chip from ACARD.

FEATURES

• Built-in high-speed ACARD RISC micro-processor

• Exclusive SCSI-to-SATA bridge

• Converts low-price SATA device to high-performance SCSI interface delivers great savings

• A new and cost-effective SCSI device

• Standard 3.5” form factor with 2.5” SATA HDD inside

• Supports Windows NT/2000/XP/2003/Vista, Linux, Mac and Sun operating systems

• Supports most Ultra SCSI interfaces

• Easy to install and use

• Cost-effective and offers better I/O performance

• Fixed Hard Drive Capacity to 1G, 2G or 8G for special system (ARS-2000SUP-1G, ARS-2000SUP-2G, ARS-2000SUP-8G)

SPECIFICATIONS

•  ACARD SCSI-to-SATA Bridge Controller

•  Ultra SCSI interface – supports data transfers at up to 20MB/s

•  50pins Ultra SCSI interface

•  Supports 2.5” SATA I and SATA II HDDs

•  Supports industrial-grade computers

•  Built-in flash ROM for easy firmware upgrades

•  Selectable SCSI ID from 0 to 7

•  Dimension: 14.6cm x 10.1cm x 2.5cm (L x W x H)

*  Note:  Please refer to Compatibility list for SATA HDDs
