ARS-2160

68-pin Ultra160 SCSI-to-SATA

OVERVIEW

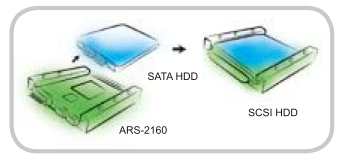

ARS-2160 is an internal SCSI-to-SATA-II bridge HDD enclosure, which converts a standard 2.5”SATA HDD into SCSI HDD with 68-pin connector. This device easily and efficiently enables users to create their own SCSI HDD.

FEATURES

•  On-chip high speed ACARD RISC micro-controller

• A general purpose SCSI-to-SATA HDD converter

•  Cost effective and higher system I/O performance

• Creates new SCSI devices in economic cost

•  Designed in 3.5” form factor for a built-in 2.5” SATA hard disk drive

•  Cross-platform operation supports Windows NT / 2000 / XP / 2003 / Vista, Linux, Mac, Sun

• Supports full LVD/SE SCSI interface

SPECIFICATIONS

• ACARD SCSI-to-SATA Bridge Controller

• LVD SCSI interface for up to 160MB/sec data transfer rate

• 68pins design for SCSI interface

• Support 2.5” SATA I、II Hard Disk Drives*

• Support SCSI RAID card

• On-board flash ROM for easy firmware upgrade

• Selectable SCSI ID from 0 to 15

• Dimension：14.6cm x 10.1cm x 2.5cm (L x W x H)

*   Note:  Please refer to Compatibility list for SATA HDDs
